This type designs and manufactures Miniature Circuit Breakers which employ hydraulic-magnetic technology for the protection of installations and equipment against overload and short circuit. Suitable for use in residential and commercial applications.

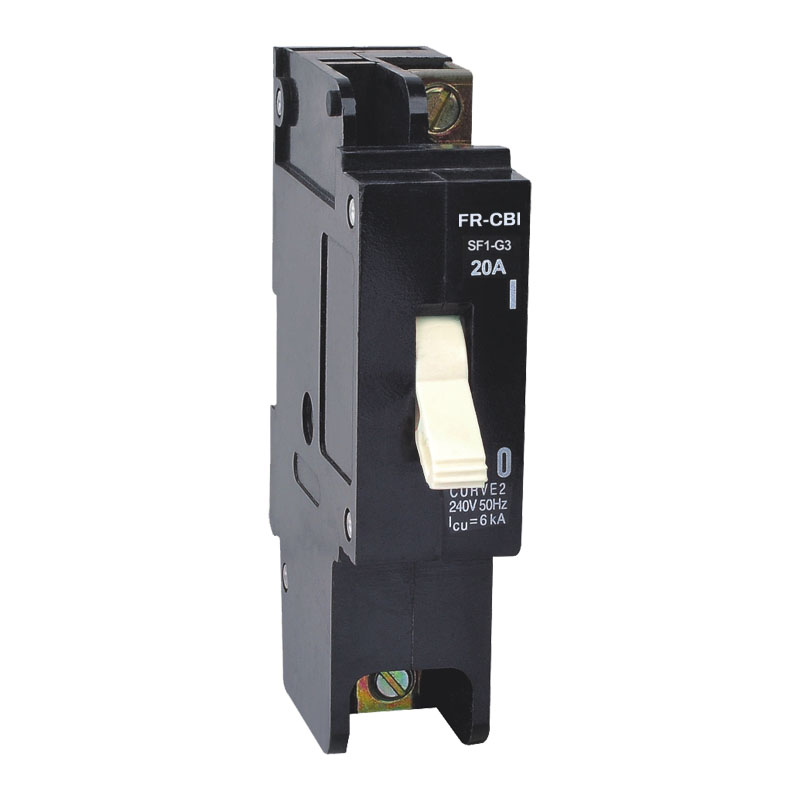

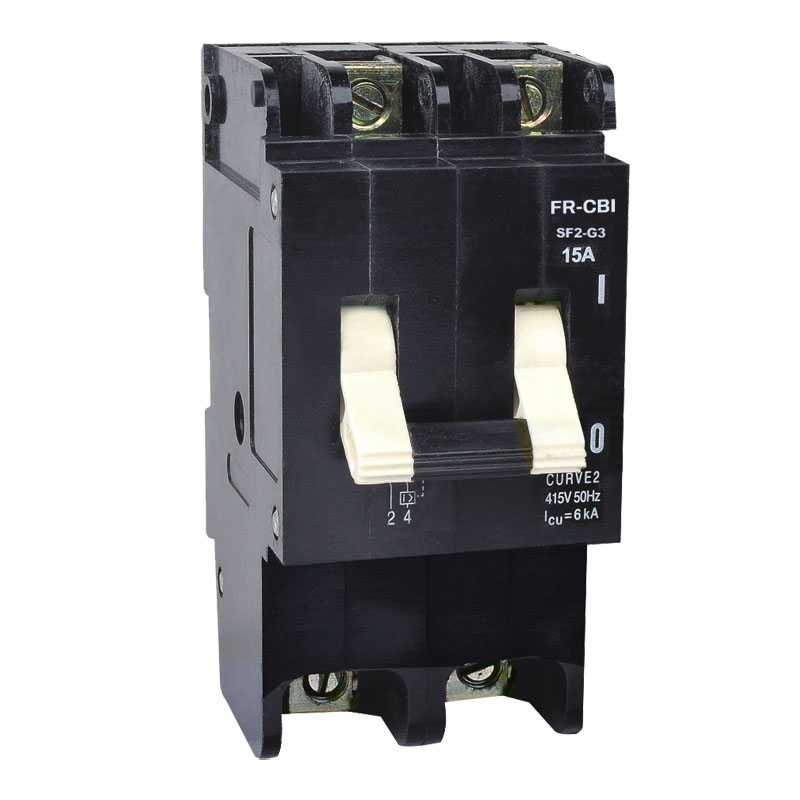

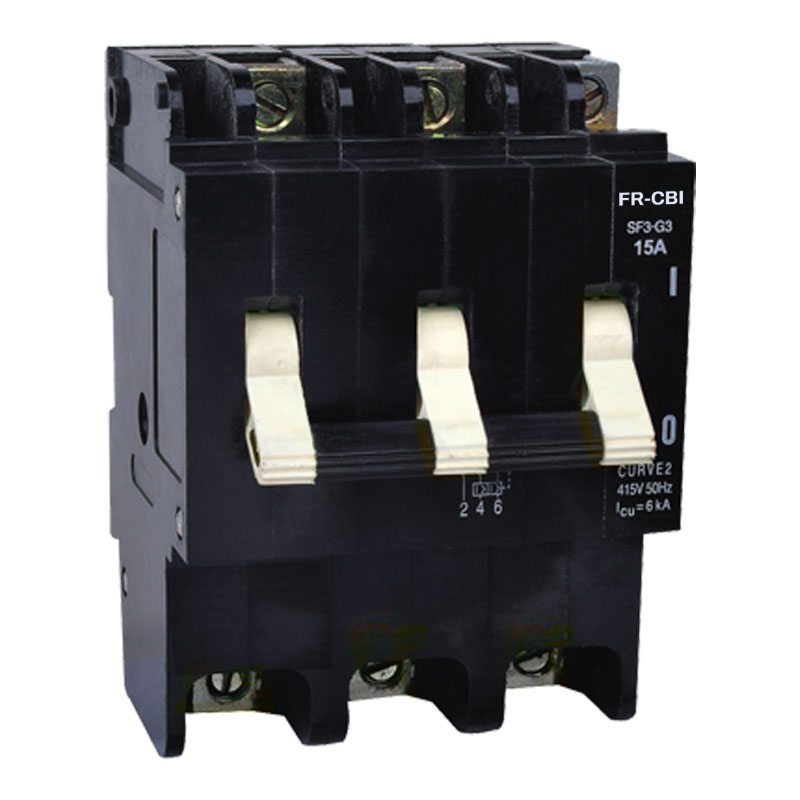

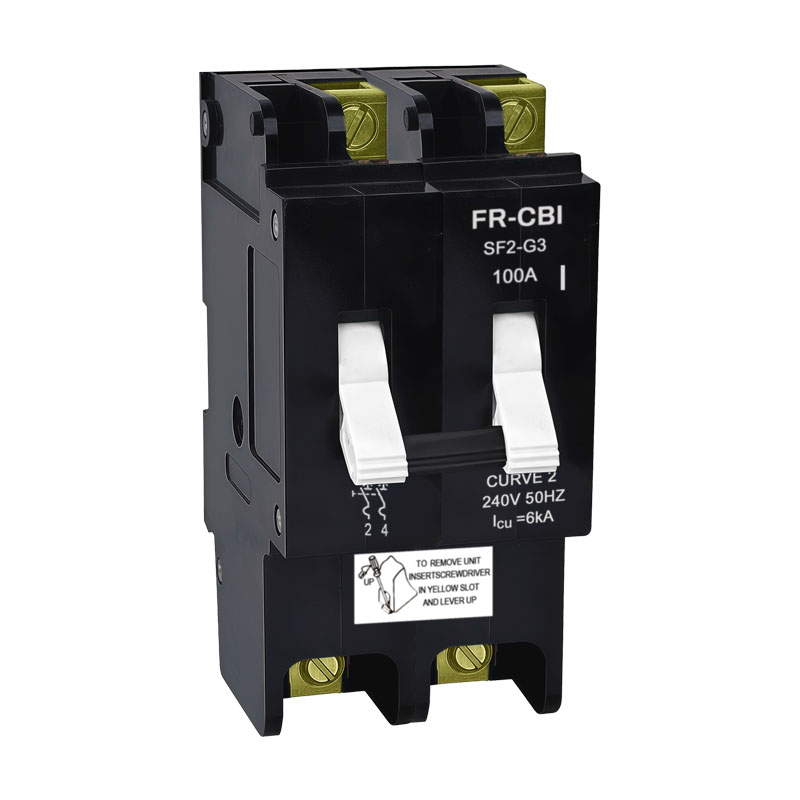

The SF1-G3/SF2-G3/SF3-G3 range of 6kA circuit breakers are suitable for industrial and commercial installation protection i.e. for factories, apartment buildings, high rise commercial buildings and in mini-substations and kiosks, where a 6kA breaking capacity is required. The 6kA circuit breakers can be used for motor protection，All the products can be installed directly onto the Mini-rail. Comply with standard IEC60947-2.
| Detail Technical Data |
| Type | SF1-G3 Short Shap MCB | ||
| Number of Poles | 1P | 2P | 3P |
| Current Rating |
5A-100A |
||
| Operating Voltages |
240VAC |
415VAC | |
| Interrupting Capacity |
6kA |
||
| Operating Temperature |
-40℃ to +85℃ |
||
| Mounting Options |
Din Rail |
||
| Time Delay Curves |
C1(Red/Orange Handle), C2(White Handle) |
||
| Rated Impulse Withstand Voltage |
6kV |
||
| Approvals |
IEC60947-2 |
||

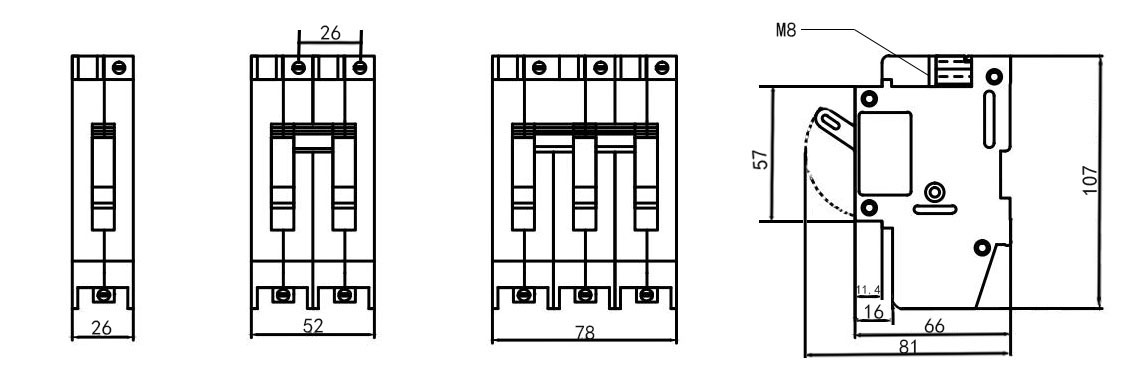

| Dimensions |

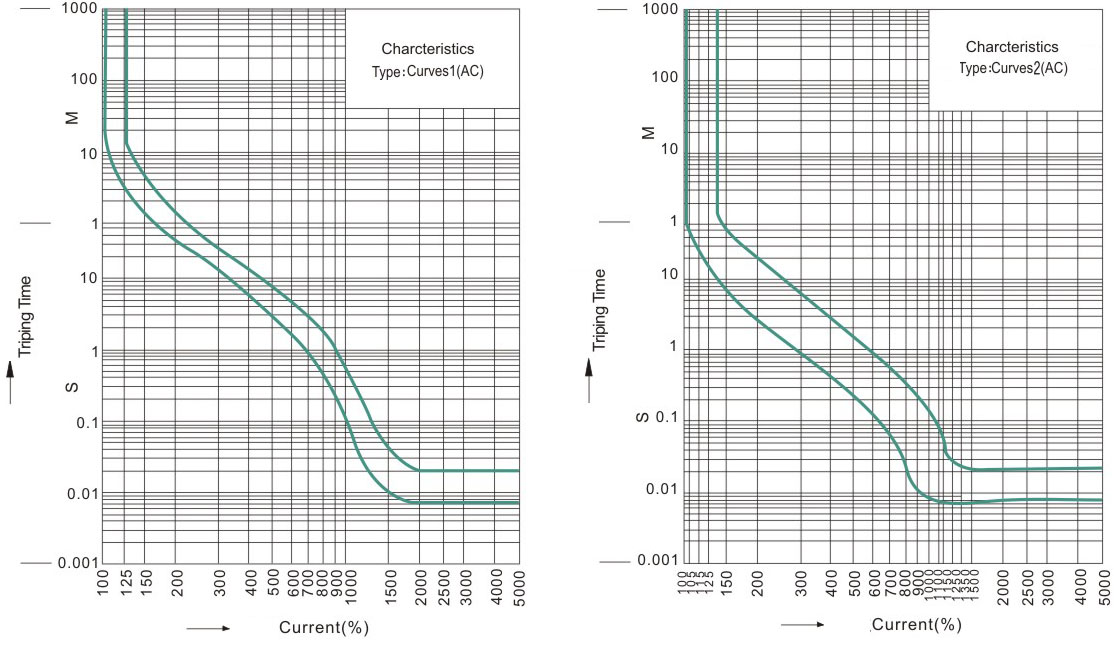

Time Delay Curves
