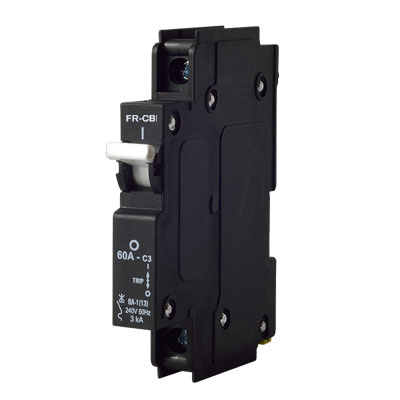

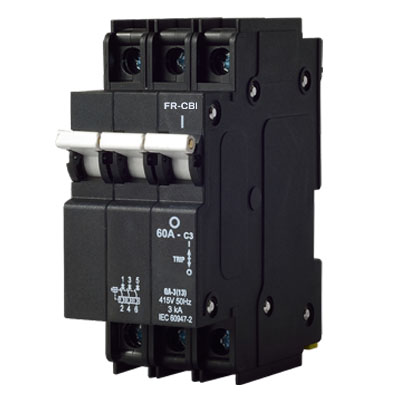

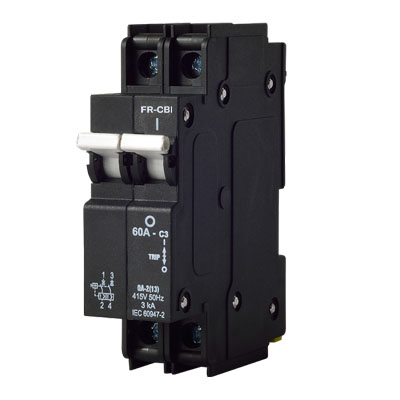

This type designs and manufactures Miniature Circuit Breakers which employ hydraulic-magnetic technology for the protection of installations and equipment against overload and short circuit. Suitable for use in residential and commercial applications.
|
Features |
Application |
|
• AC Circuit Breaker • Hydraulic-Magnetic technology • One, two, three, four pole, 1+N and 3+N • Ratings 5 to 60 A • Ultra compact – 13 mm wide module • Reset immediately after overload • Shell designed for easier installation onto busbar • Precision tripping characteristics • Suitable to use for electrical isolation |
• AC branch circuit protection (IEC60947-2) • Telecom / datacom equipment • Lighting control • UPS equipment • Alternative energy equipment • Mobile power generation equipment • Railway signalling equipment • Residential equipment • Industrial equipment |
| Detail Technical Data |
| Product type |
Circuit Breaker |
|||||
| Approvals |
IEC60947-2 |
|||||
| Number of Poles | 1P | 1P+N | 2P | 3P | 4P | |
| Operating Voltages |
240VAC |
415VAC |
||||
| Current Rating |
5A-60A |
|||||
| Interrupting Capacity |
3kA |
|||||
| Operating Temperature |
-40℃ to +85℃ |
|||||
| Mounting options |
Mini Rail |
|||||
| Time Delay Curves |
C3 |
|||||
| Endurance |
10000 operations - 1500 electrical |
|||||
|
35 to 85% relative |
|||||
| Weight |
102g per pole |
|||||

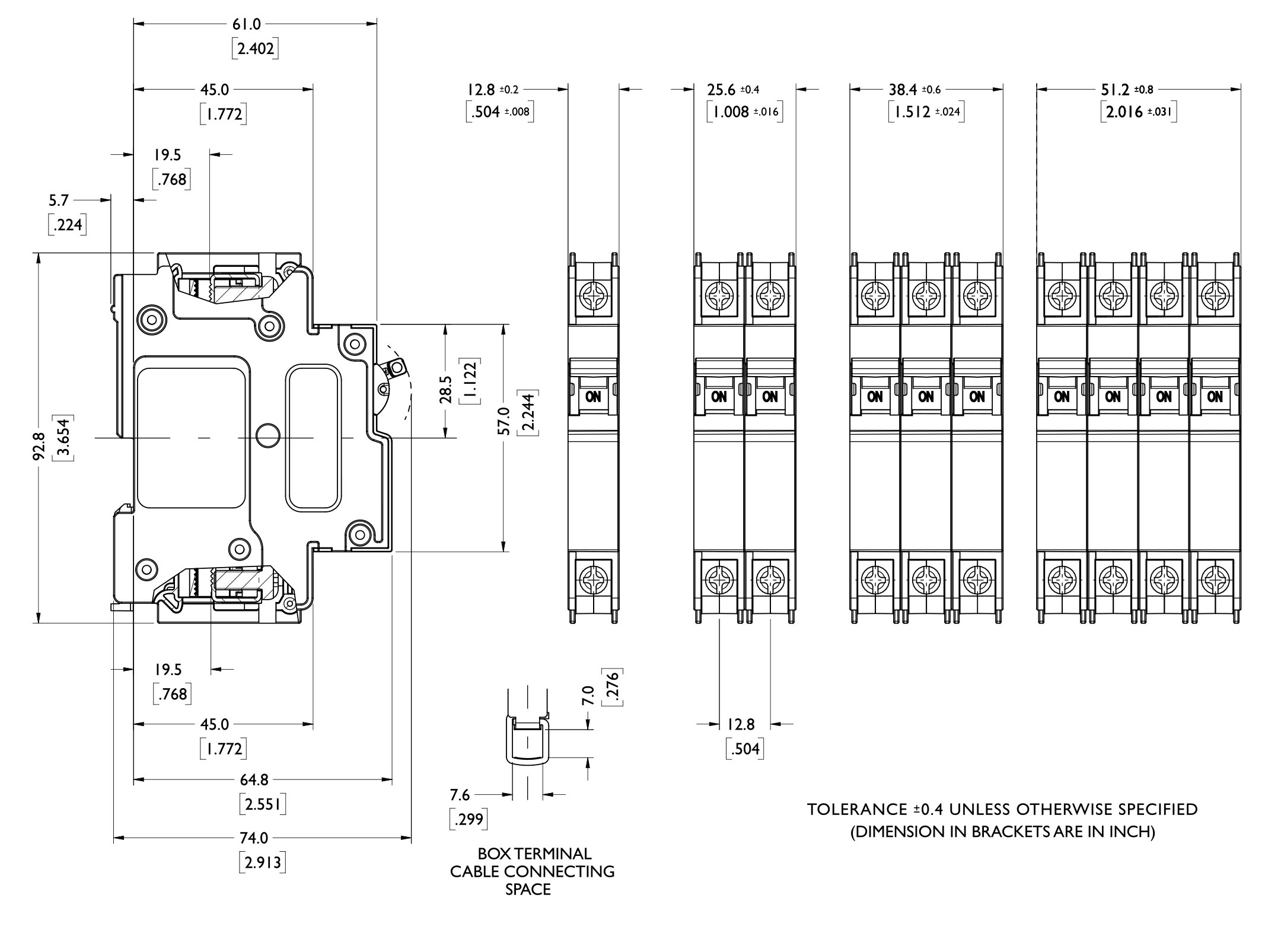

| Dimensions |

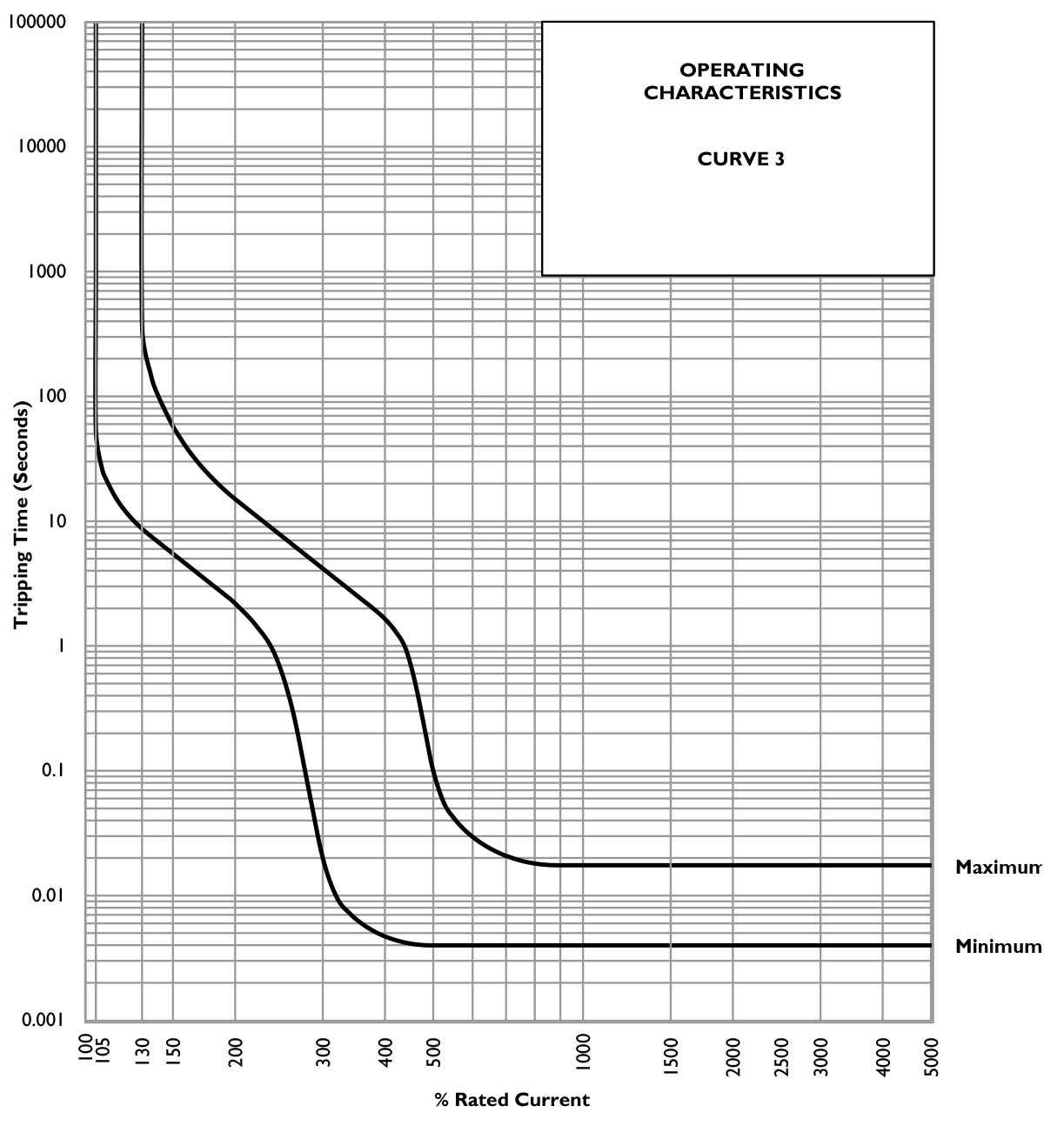

| Time Delay Curves |
