| Features | Application |
|
●Ground Fault Protection (GFCI) ●Overcurrent and Short-Circuit Protection ●Reliable Tripping Mechanism
●Plug-On Mounting |
●Residential Electrical Systems ●Pool and Spa Equipment ●Outdoor Power Distribution ●Light Industrial Use |
| Detail Technical Data |
| Type | AD910 GFCI（Ground Fault Circuit Interrupter) |
|
Current Rating |
15A,20A,25A,30A,35A,40A,45A,50A |
|
Voltage Rating |
120/240 VAC |
|
Mounting Type |
Plug-in |
|
Number of Poles |
2P |
|
Short Circuit Current Rating |
10kA |
|
Circuit Breaker Type |
Ground fault protecting class A 6mA |
|
Ratings |
HACR rated |
|
Electrical Connection |
Screw clamp terminals |
|
Temperature for operation |
40 °C |

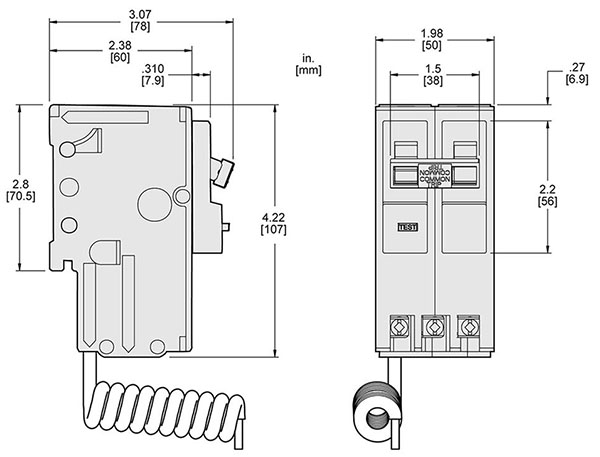

| Dimensions |
|

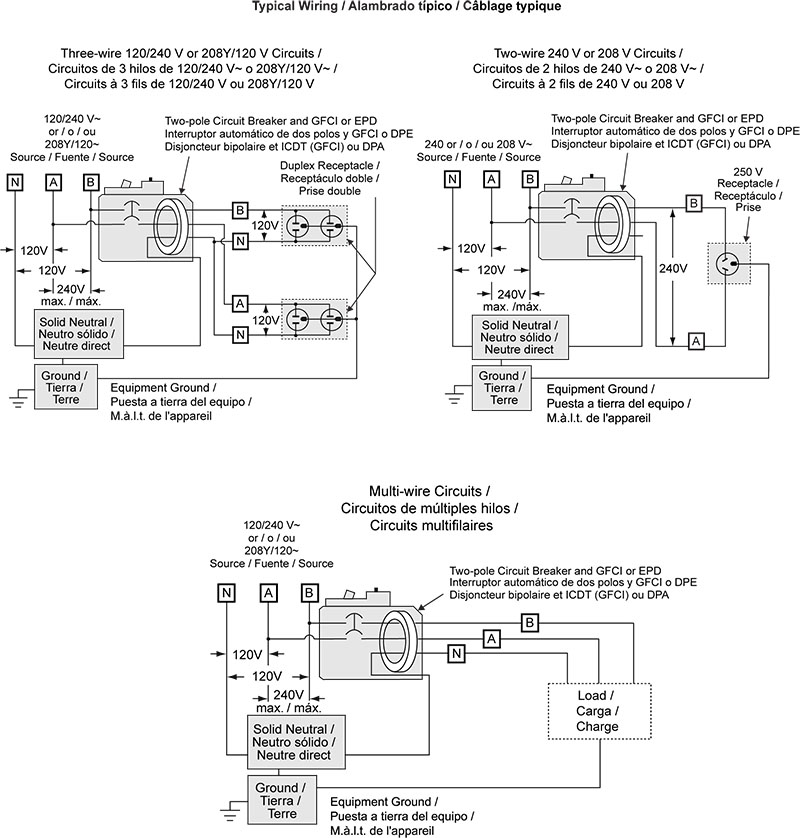

Wiring Diagram |
